Galvanized Truss Nail Plates for Timber Connections
Hbcrownwealth supplies truss nail plates for timber framing and prefabricated wood components. Made from galvanized steel, these plates feature punched teeth on one side to connect adjacent timber members. Choose single-teeth or double-teeth models to match your purchasing specification.
Product Features
- Catalog material: galvanized steel, SGC340+Z275.
- Two tooth configurations: TPD double-teeth series and TPS single-teeth series.
- Seven catalog sizes per series: from 50 × 75 mm to 150 × 150 mm.
- Wholesale and OEM/ODM support: submit drawings or samples for a custom manufacturing review.
Product Specifications
W = plate width; L = plate length; T = plate thickness; H = tooth height. Metric dimensions are reproduced from the catalog. Inch sizes are the catalog’s nominal designations, not exact conversions.
Double-Teeth Truss Nail Plates — TPD Series
| Part No. | Nominal Size (inch) | Width W (mm) | Length L (mm) | Thickness T (mm) | Tooth Height H (mm) |
|---|---|---|---|---|---|

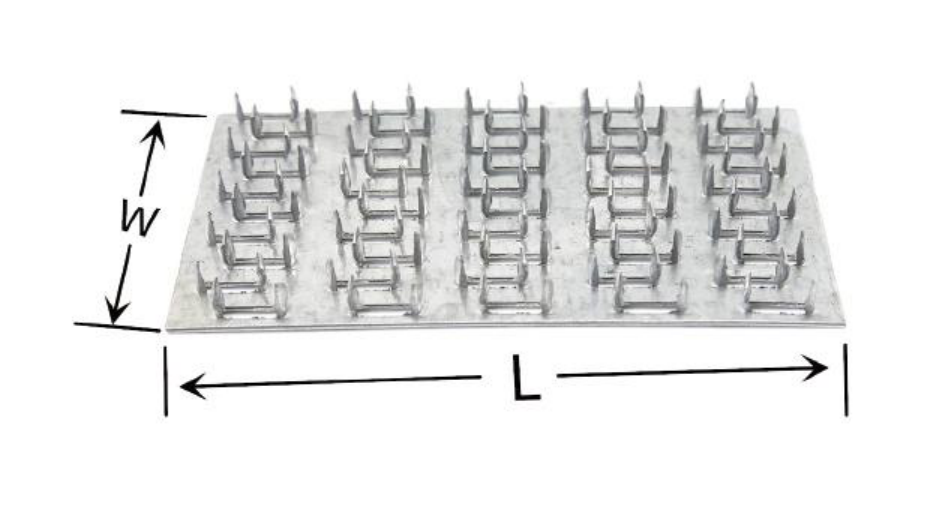

| TPD-5075 | 2 × 3 | 50 | 75 | 1.0 | 9 |
| TPD-50100 | 2 × 4 | 50 | 100 | 1.0 | 9 |
| TPD-75150 | 3 × 6 | 75 | 150 | 1.0 | 9 |
| TPD-100100 | 4 × 4 | 100 | 100 | 1.0 | 9 |
| TPD-100125 | 4 × 5 | 100 | 125 | 1.0 | 9 |
| TPD-100150 | 4 × 6 | 100 | 150 | 1.0 | 9 |
| TPD-150150 | 6 × 6 | 150 | 150 | 1.0 | 9 |
Single-Teeth Truss Nail Plates — TPS Series
| Part No. | Nominal Size (inch) | Width W (mm) | Length L (mm) | Thickness T (mm) | Tooth Height H (mm) |
|---|---|---|---|---|---|

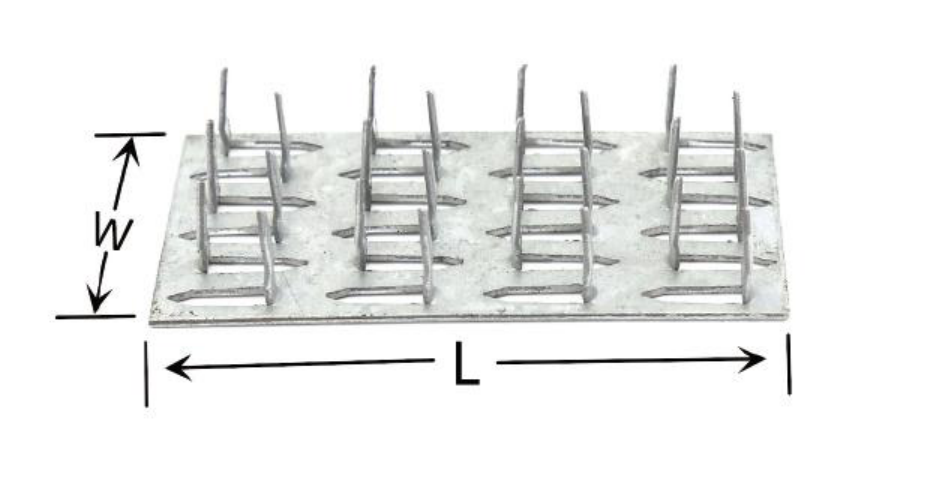

| TPS-5075 | 2 × 3 | 50 | 75 | 1.0 / 1.2 / 1.5 | 15 |
| TPS-50100 | 2 × 4 | 50 | 100 | 1.0 / 1.2 / 1.5 | 15 |
| TPS-75150 | 3 × 6 | 75 | 150 | 1.0 / 1.2 / 1.5 | 15 |
| TPS-100100 | 4 × 4 | 100 | 100 | 1.0 / 1.2 / 1.5 | 15 |
| TPS-100125 | 4 × 5 | 100 | 125 | 1.0 / 1.2 / 1.5 | 15 |
| TPS-100150 | 4 × 6 | 100 | 150 | 1.0 / 1.2 / 1.5 | 15 |
| TPS-150150 | 6 × 6 | 150 | 150 | 1.0 / 1.2 / 1.5 | 15 |
Applications
These timber connector plates are used in framed wood structures and prefabricated timber elements, including trusses. Select the plate size, tooth configuration and thickness according to your connection design.
Selection and Installation
Confirm timber dimensions, connection layout and required performance before ordering. Installation method and pressing equipment should follow the approved connection design. The catalog does not provide load ratings; request model-specific technical information before using the product in a load-bearing connection.
Wholesale Supply and Custom Manufacturing
As a construction hardware manufacturer and wholesaler in China, Hbcrownwealth supports distributors, wholesalers and OEM brands. Send the part number, thickness, order quantity, packaging requirements and destination country for a quotation. For non-standard plates, include a dimensioned drawing or sample.
Frequently Asked Questions
What should I include in an inquiry?
Please specify the TPD or TPS part number, thickness, quantity and destination. Include drawings if your requirements differ from the listed dimensions.
Are the single-teeth and double-teeth models interchangeable?
They have different tooth configurations and catalog tooth heights. Confirm the appropriate model against your connection design before substitution.
Can you quote a custom size?
Send your drawing or sample for an OEM/ODM review. Custom specifications, tooling and production details are confirmed before ordering.
